Assembly and wiring operations
Kitting, subassembly, panel wiring, and rack wiring
Assembly, Kitting, Panel & Rack Wiring
Assembly & Wiring

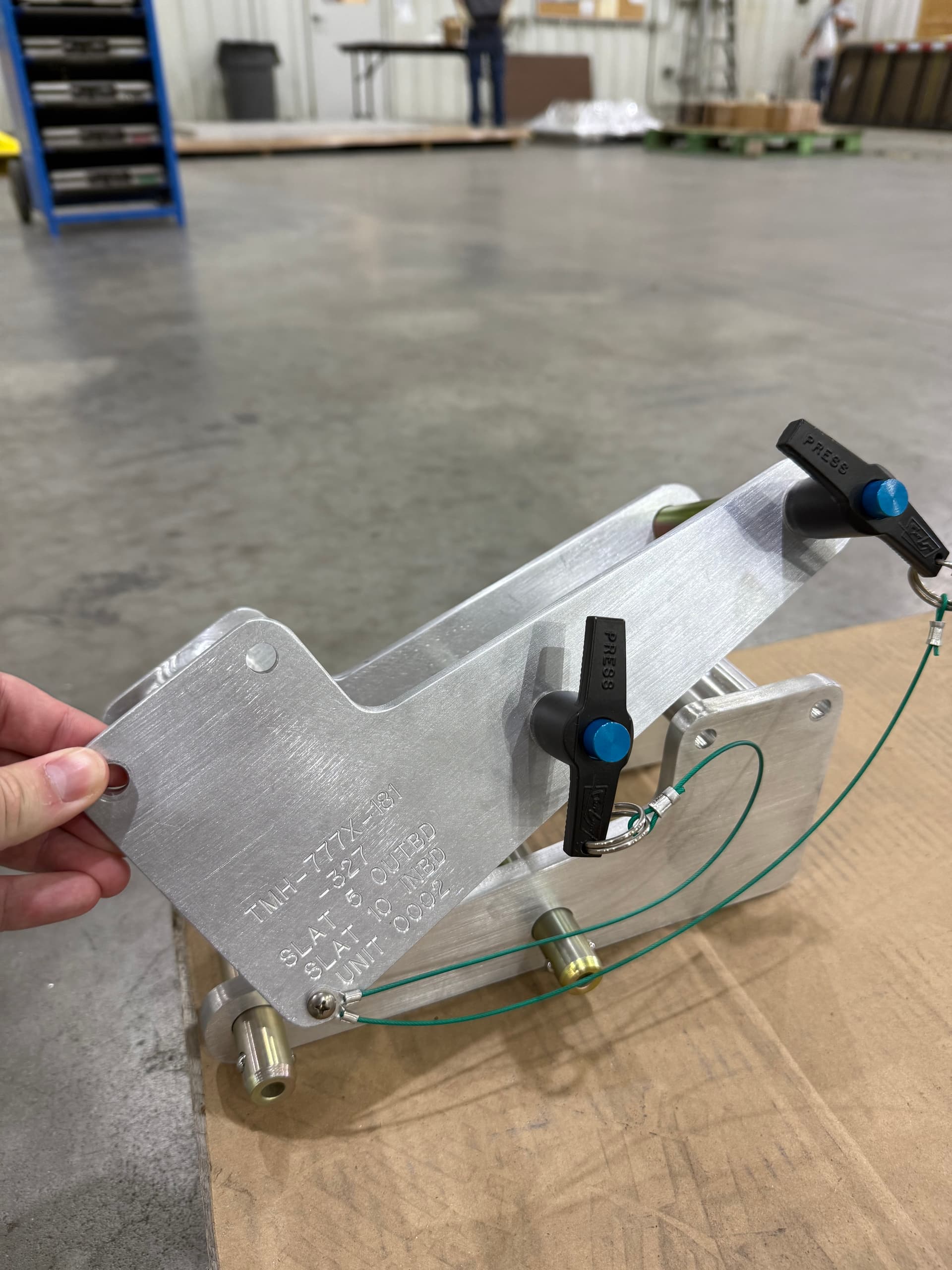

Mechanical assembly, subassemblies, kitting, and panel or rack wiring to the agreed build and test requirements.
View equipment detailsOVERVIEW
Equipment and working range
Build-to-print and design-to-spec assembly includes kitting, subassemblies, and panel and rack wiring. Rack assemblies receive functional testing before shipment. Scope of supply, interfaces, test procedures, and acceptance criteria are agreed with your team.
Build ScopeBuild-to-print and design-to-spec
OperationsKitting, subassembly, mechanical assembly
WiringPanel and rack wiring
TestingRack assembly functional testing before shipment
Used on fully assembled, tested rack systems and power-distribution frames.
PROCESS DETAILS
Equipment & process details
Rack assembly functional testing
Pre-shipment functional checks against the agreed test procedures
Planning your assembly & wiring project?
Combine fabricated structures, machined components, finish, hardware, and wiring into the assembly defined by your build package.
Confirm who supplies each item, the assembly sequence, and the acceptance criteria. Electrical or functional testing is scoped against the procedures and equipment required for the project.
Plan your complete manufacturing packageInclude with your request
- Assembly drawing, bill of materials, revision, and scope of supply
- Hardware, torque, wiring or schematic requirements, and customer-supplied items
- Acceptance checks, test procedures, labeling, packaging, and delivery sequence
For controlled technical data, arrange the appropriate transfer with our team before sending it.
